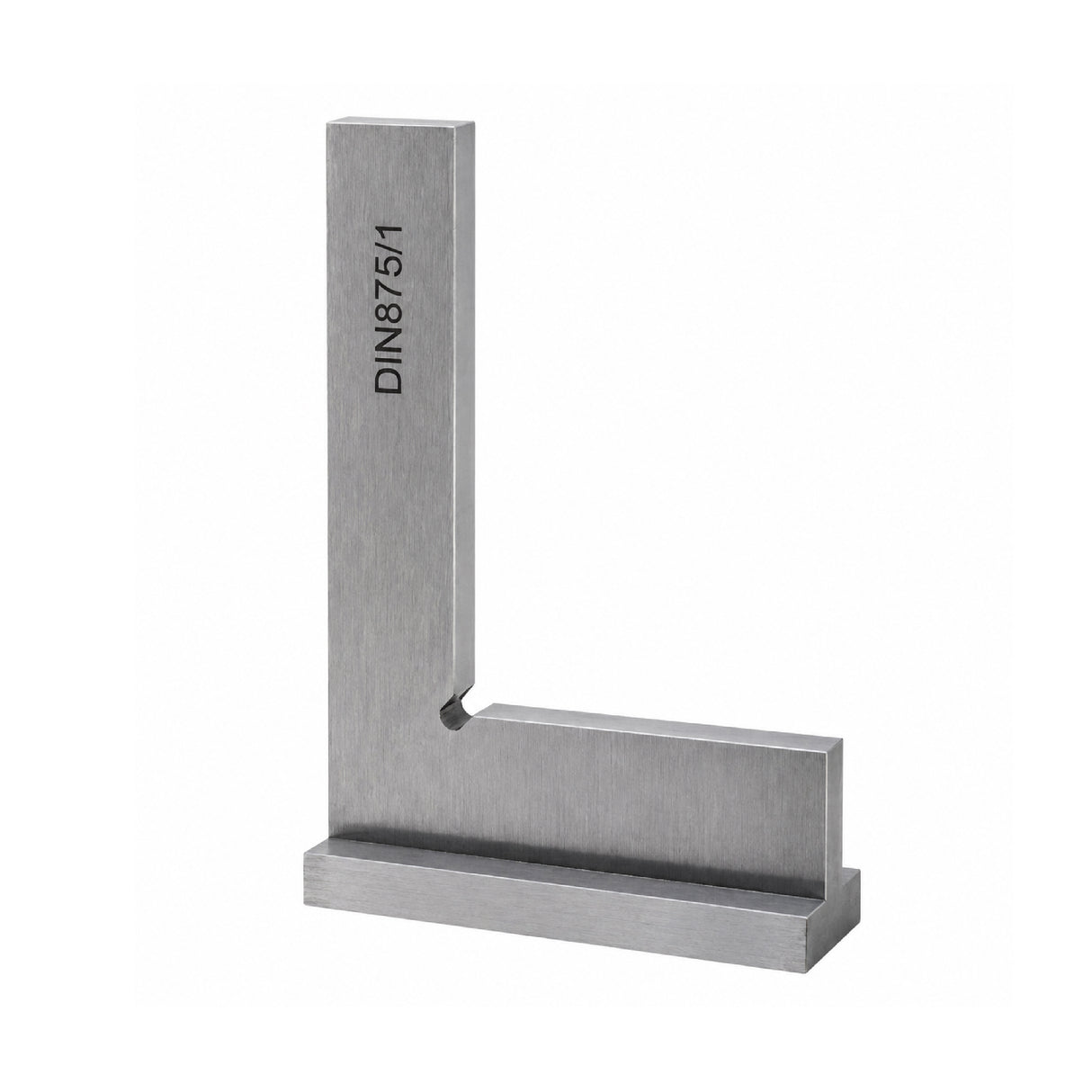

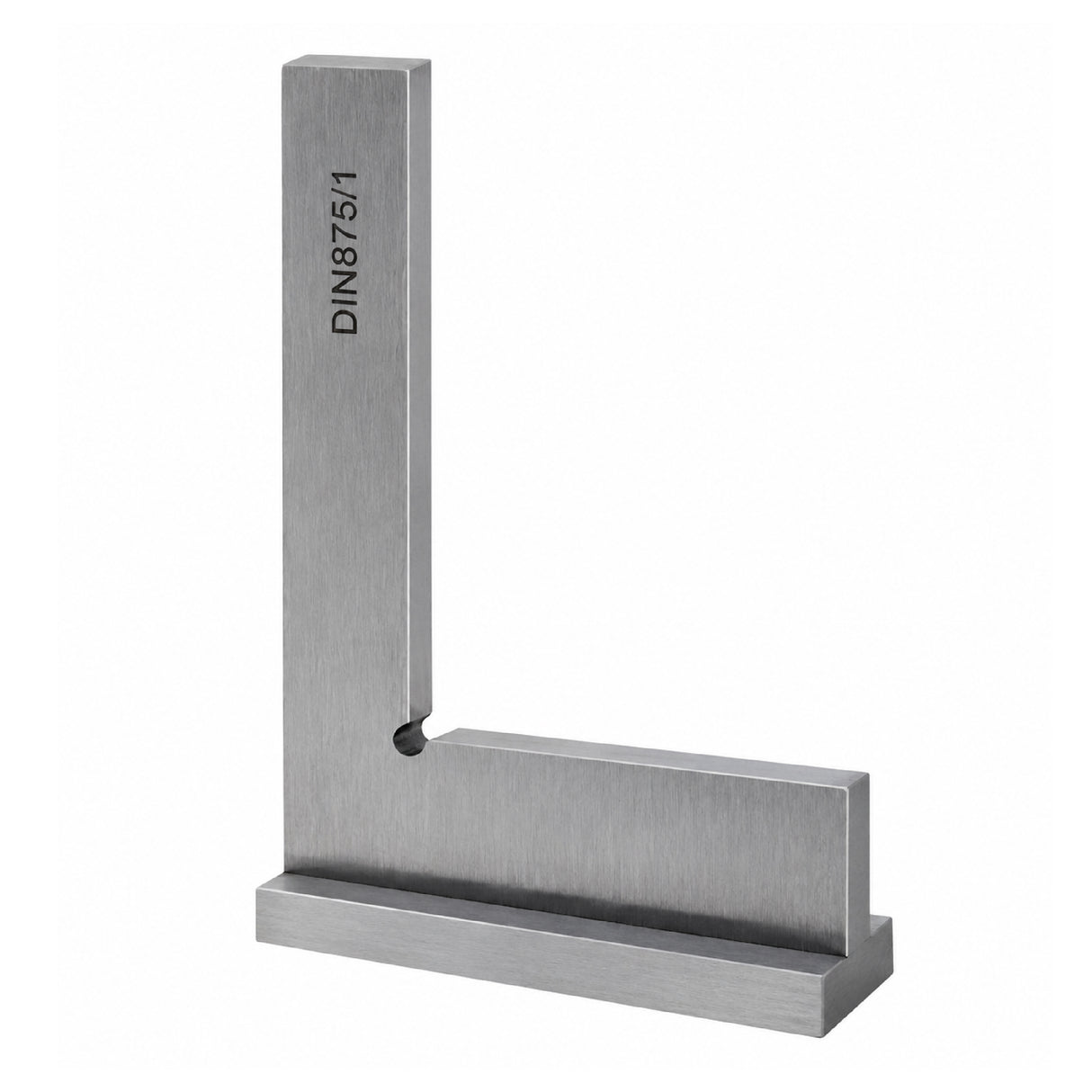

Precision Engineer’s Square - DIN 875/1

Wir versenden innerhalb von 1–2 Werktagen weltweit aus Belgien mit zuverlässigen Versanddienstleistern wie FedEx, TNT Express und DPD.

Sie können Ihr Paket innerhalb von 2 bis 8 Werktagen ab dem Versand aus unserem Lager erwarten.

Die Versandkosten werden beim Checkout anhand Ihres Ziellandes und des Paketgewichts berechnet. Sofern verfügbar, wird eine Sendungsverfolgung bereitgestellt.

Bei internationalen Bestellungen können lokale Zollgebühren oder Steuern anfallen.

Professional precision engineer’s square (Anschlagwinkel) for checking and marking accurate 90° angles in jewellery making, goldsmithing, metalworking and precision workshop applications.

Unlike a standard ruler-style square, the solid base allows the square to sit securely against the edge of a workpiece. The precision blade can then be used to check whether an adjoining surface is correctly square or to guide the marking of an accurate 90° line.

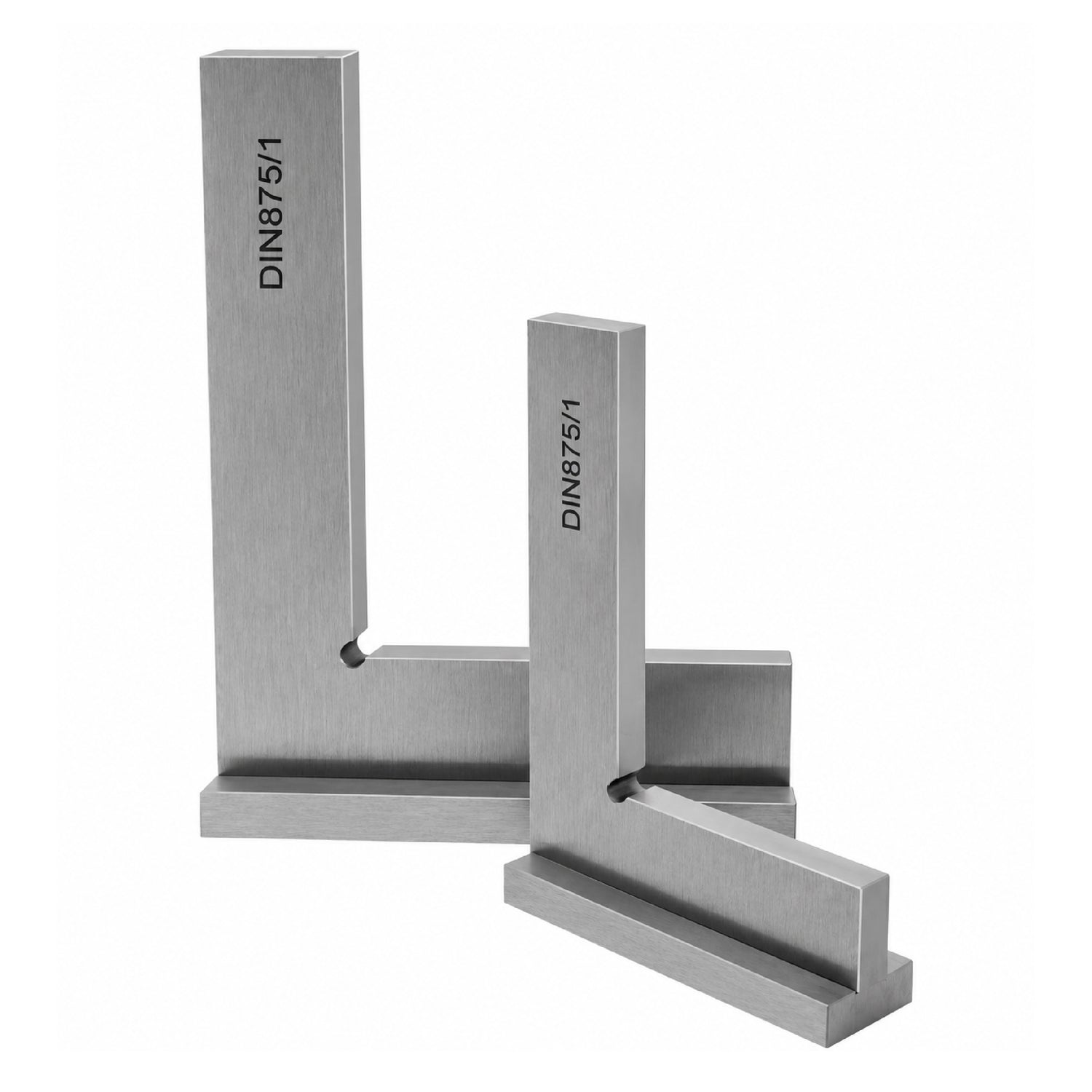

Manufactured from metal with precision-ground working surfaces and marked DIN 875/1, this compact square is available in two sizes: 75 × 50 mm and 100 × 70 mm.

How to Use

Place the thicker base of the square firmly against a straight reference edge of the workpiece. The upright blade should then sit against the surface you want to check.

If the surface is square, it should align evenly with the blade. A visible gap between the blade and workpiece can indicate that the surface is not perfectly perpendicular.

For marking, hold the base securely against the reference edge and use the straight blade as a guide to scribe or mark a 90° line across the workpiece.

Key Features

• Precision engineer’s square / try square

• DIN 875/1

• Designed for checking accurate 90° angles

• Precision-ground working surfaces

• Solid metal construction

• Compact size ideal for precision bench work

• Suitable for checking, setting and marking workpieces


Available Sizes

• 75 × 50 mm

• 100 × 70 mm

Ideal For: Jewellers, goldsmiths, silversmiths, watchmakers, model makers, machinists, metalworkers and precision workshop applications.
